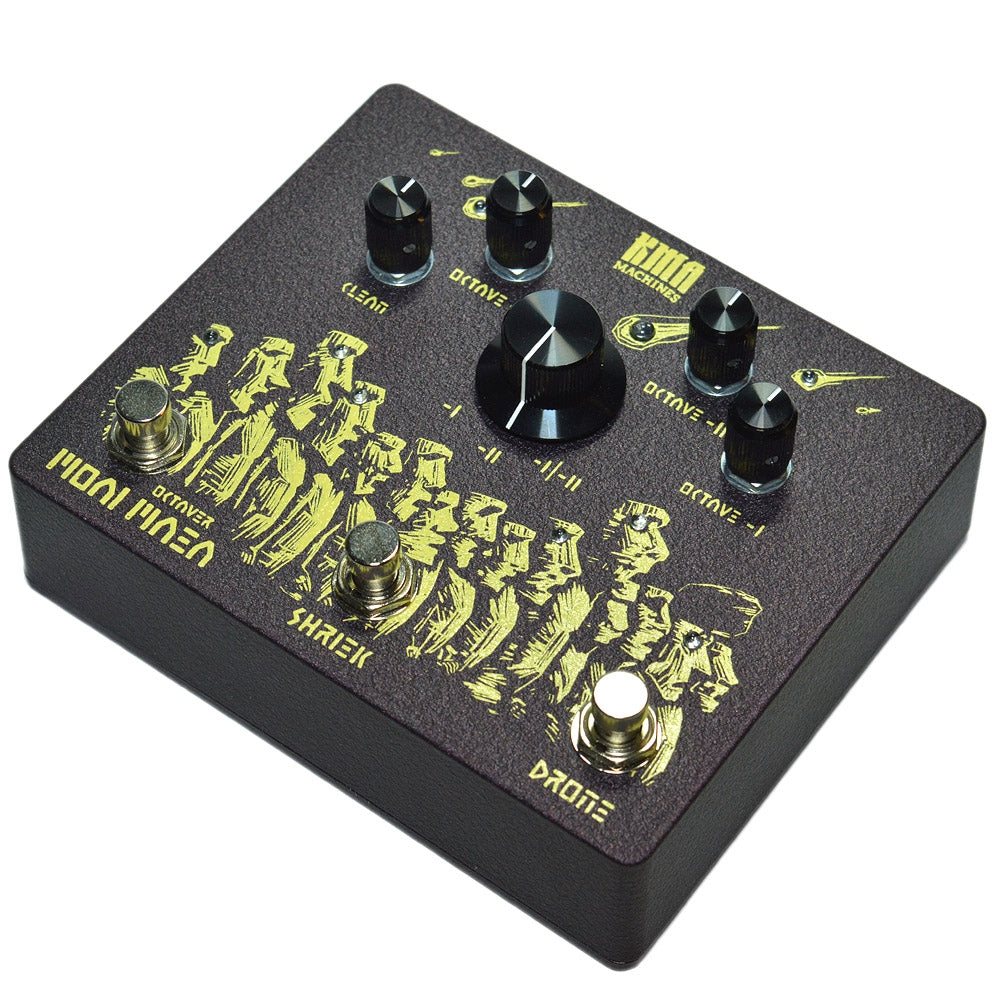

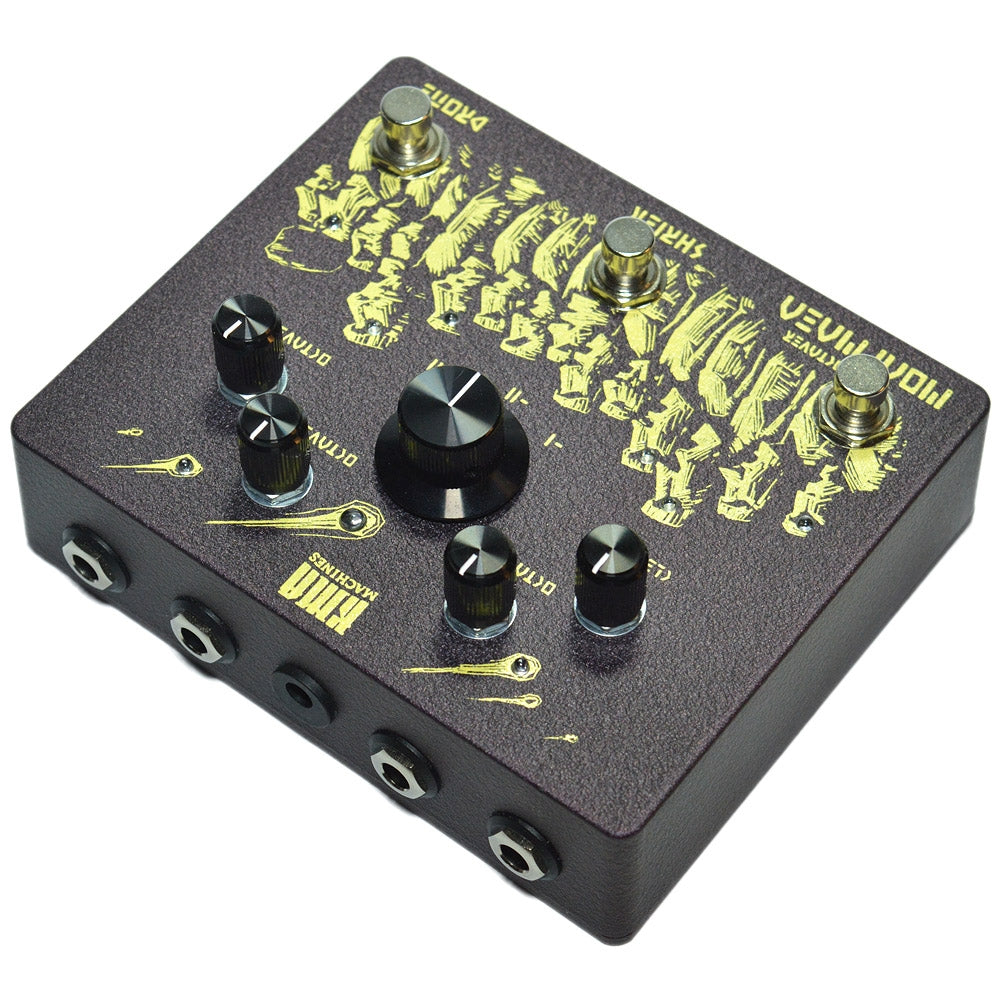

KMA Moai Maea is an analog octaver. The sound of a combination of your choice between the dry signal, upper octave and two down octaves. Monophonic.
- Controls:
Clean: Sets the volume level for the dry signal.
Octave +I: Sets the volume level for the upper octave.
Octave -I: Sets the volume level for -1 octave (one octave down)
Octave -II:Sets the volume level for -2 octave (two octaves down)
Sub Mode switch: Chooses which octave down harmonies are active. -I activates the first octave down, -II the second octave down and -I/-II activates them both.
Internal trimpots: Inside the pedal there are controls for clean signal phase reverse, upper octave maximum volume and upper octave fuzz. - Power Requirements: 2.1 mm 9V DC centre negative power supply. Under 100 mA.
- True Bypass
- Made in Germany
